New 1200V Wide Bandgap Silicon Carbide (SiC) Schottky diodes feature a merged PIN Schottky (MPS) structure, delivering outstanding performance with high forward surge current capability, low forward voltage drop, low leakage current, and low capacitive charge. These characteristics result in enhanced efficiency and robustness for high-frequency and high-voltage applications.

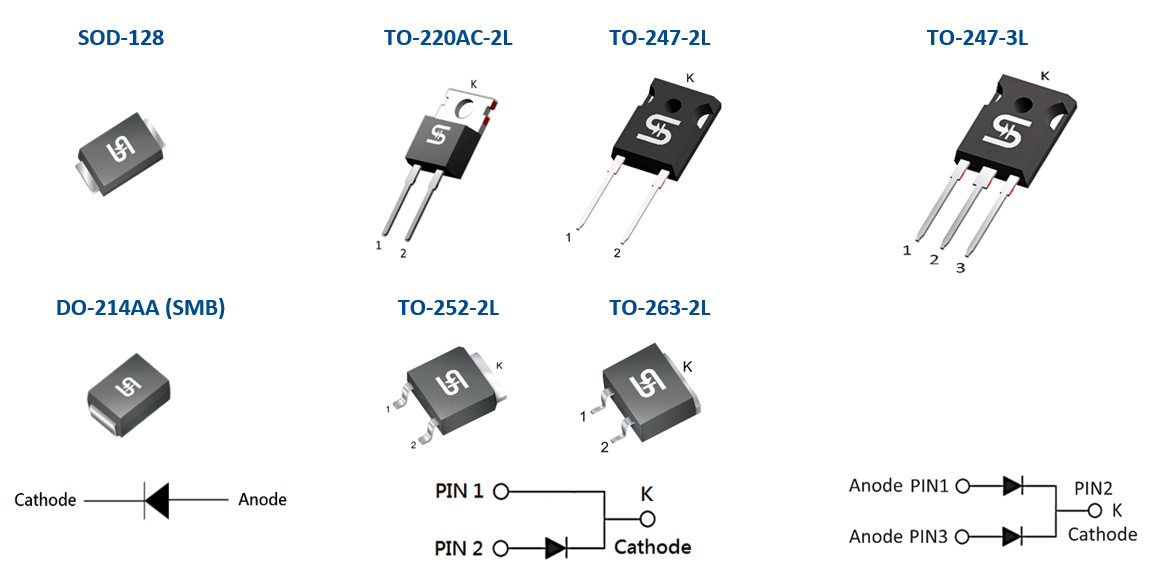

Available in 1A and 2A current ratings in compact SMB and low-profile SOD-128 packages, these diodes provide improved creepage distances (e.g., 3.2mm for SOD-128, 2.6mm for SMB) to ensure better electrical isolation. For higher current demands, versions rated up to 40A are offered in TO-247-3L packages, enabling system-level optimization across a wide range of power designs.
All devices are AEC-Q101 qualified and support a maximum junction temperature of 175°C, ensuring high reliability and thermal stability in demanding environments such as EV fast-charging infrastructure, energy storage systems, and industrial telecom power supplies. Additionally, their positive VF temperature coefficient simplifies thermal management, enabling predictable and stable performance in mission-critical applications.
Key Features
- AEC-Q101 qualified
- SOD-128 minimum creepage distance 3.2mm guaranteed by design
- SMB minimum creepage distance 2.6mm guaranteed by design
- Max. junction temperature 175°C
- Merged PIN Schottky (MPS) design
- Positive temperature coefficient on VF
- RoHS Compliant
- Halogen-Free
Applications
- PFC high frequency rectification
- EV fast charging stations
- Bootstrap and desaturated diode
- Grid energy storage system (ESSs)
- Uninterruptible power supplies (UPS)
- Solar inverter systemsPV Microinverters
- Telecom rectifiers
Product Portfolio
| Part Number | Package | VRRM (V) | IF (A) | VF @ TA= 25°C | IR @TA= 25°C Typ. (μA) | IR @TA= 175°C Typ. (μA) | IFSM @10μs (A) | QC Typ (nC) | |
| Typ. (V) | Max. (V) | ||||||||
| TSCDFS01120G2H | SOD-128 | 1200 | 1 | 1.36 | 1.5 | 3 | 5 | 256 | 4.3 |
| TSCDFS02120G2H | SOD-128 | 2 | 1.37 | 1.5 | 4 | 15 | 464 | 10.3 | |
| TSCDB01120G2H | DO-214AA (SMB) | 1 | 1.36 | 1.5 | 3 | 6 | 256 | 4.3 | |
| TSCDB02120G2H | DO-214AA (SMB) | 2 | 1.37 | 1.5 | 4 | 15 | 464 | 10.3 | |
| TSCDM05120G2H | TO-252-2L | 5 | 1.38 | 1.5 | 30 | 60 | 580 | 28 | |
| TSCDM08120G2H | TO-252-2L | 8 | 1.38 | 1.5 | 30 | 100 | 677 | 46 | |
| TSCDM10120G2H | TO-252-2L | 10 | 1.39 | 1.5 | 30 | 100 | 843 | 51 | |
| TSCDK05120G2H | TO-263-2L | 5 | 1.38 | 1.5 | 30 | 60 | 580 | 28 | |
| TSCDK08120G2H | TO-263-2L | 8 | 1.38 | 1.5 | 30 | 100 | 677 | 46 | |
| TSCDK10120G2H | TO-263-2L | 10 | 1.39 | 1.5 | 30 | 100 | 920 | 51 | |
| TSCDK15120G2H | TO-263-2L | 15 | 1.38 | 1.5 | 30 | 100 | 1241 | 74 | |
| TSCDK20120G2H | TO-263-2L | 20 | 1.38 | 1.5 | 30 | 200 | 1320 | 96 | |
| TSCDT05120G2H | TO-220AC-2L | 5 | 1.38 | 1.5 | 30 | 60 | 580 | 28 | |
| TSCDT08120G2H | TO-220AC-2L | 8 | 1.38 | 1.5 | 30 | 100 | 677 | 46 | |
| TSCDT10120G2H | TO-220AC-2L | 10 | 1.39 | 1.5 | 30 | 100 | 964 | 51 | |
| TSCDT15120G2H | TO-220AC-2L | 15 | 1.38 | 1.5 | 30 | 100 | 1203 | 74 | |
| TSCDT20120G2H | TO-220AC-2L | 20 | 1.38 | 1.5 | 30 | 200 | 1366 | 96 | |
| TSCDAH10120G2H | TO-247-2L | 10 | 1.39 | 1.5 | 30 | 100 | 920 | 51 | |
| TSCDAH15120G2H | TO-247-2L | 15 | 1.38 | 1.5 | 30 | 100 | 1158 | 74 | |
| TSCDAH20120G2H | TO-247-2L | 20 | 1.38 | 1.5 | 30 | 200 | 1280 | 96 | |
| TSCDAH30120G2H | TO-247-2L | 30 | 1.4 | 1.5 | 30 | 200 | 1360 | 142 | |
| TSCDAH40120G2H | TO-247-2L | 40 | 1.42 | 1.5 | 30 | 200 | 1771 | 184 | |
| TSCDH10120G2H | TO-247-3L | 10 | 1.38 | 1.5 | 30 | 60 | 580 | 28 | |
| TSCDH15120G2H | TO-247-3L | 15 | 1.36 | 1.5 | 30 | 100 | 765 | 46 | |
| TSCDH20120G2H | TO-247-3L | 20 | 1.39 | 1.5 | 30 | 100 | 920 | 51 | |
| TSCDH30120G2H | TO-247-3L | 30 | 1.38 | 1.5 | 30 | 100 | 1158 | 74 | |
| TSCDH40120G2H | TO-247-3L | 40 | 1.38 | 1.5 | 30 | 200 | 1280 | 96 | |
